Regavolt Single Phase 3kVA Variable Transformer Variac (12A 0-113%)
£572.77 INC VAT
50+ Years of Expertise
Made in Europe
Same Day Despatch
Free Next Working Day Delivery if ordered before 2:30PM
Product Specifications
| Phase | Single Phase |
|---|---|
| Operation Type | Manually Operated |
| Mounting Type | Panel Mount |
| Input Voltage (V) | ["230V"] |
| Output Tolerance (%) | 0 - 113% |
| Power Rating (Amps) | 12 |
| Input Frequency Range (Hz) | 45 - 400 |
The 3kVA Regavolt variable auto transformer is designed for precise voltage adjustments, making it an essential tool for various electrical applications.
Key Features
- High Resolution Windings: Allow for precise voltage adjustments.

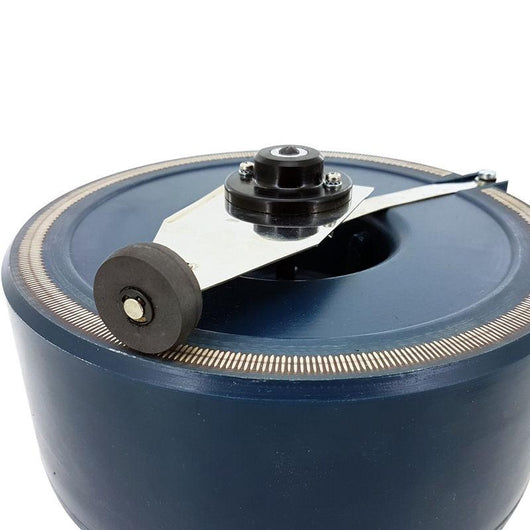

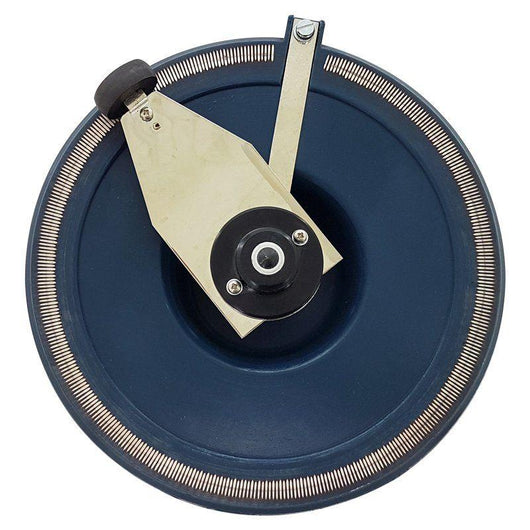

- Silver Plated Track Surface: Provides superior contact and corrosion resistance.
- Manufactured to Latest Standards: Complies with BS EN 61558-2-14.
- Unit Rating: 3kVA, with insulation greater than 10MΩ.
- Output Voltage Range: Continuously variable from 0-113%.
- Operating Temperature: -30°C to +40°C.
- Encapsulated Construction: Enhances heat dissipation and provides physical protection.
- Rugged Design: Features low-friction, low-wear roller brushes.
- Mounting Fixture Kit: Included for easy installation.
- Customisable: Optional knobs and dials available.
Specifications
| Specification | Details |
|---|---|
| Unit Rating | 3kVA |
| Output Voltage Range | 0-113% of input voltage |
| Maximum Output Current | Variable |
| Insulation Resistance | >10MΩ |
| Operating Temperature | -30°C to +40°C |
| Construction Type | Encapsulated |
| Brush Type | Low friction, low wear roller brushes |
| Optional Accessories | Knobs and dials available |
Additional Information
Also available in three-phase, ganged, motorised, and enclosed models.
